UHPA method

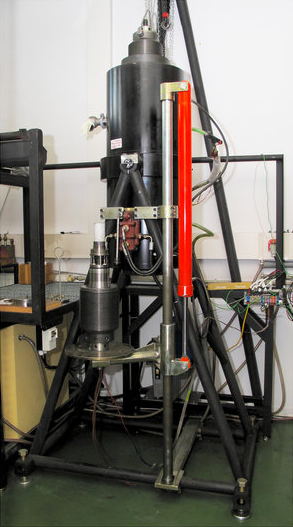

High pressure high temperature equipment

High pressure high temperature equipment, typical experimental setup for gallium nitride (GaN) crystal growth with the high nitrogen pressure solution (HNPS) method can be used for ultra-high pressure annealing (UHPA) Vertically positioned, technological gas pressure chambers (reactors) with an internal diameter of 4, 6 and 10 cm (allowing graphite, boron nitride or alumina crucible with working volume of 10, 25 and 150 cm3) can be applied. Maximum gas (nitrogen or argon) pressure is 1 GPa (10 000 atmospheres). Multizone cylindrical graphite furnaces, capable of reaching temperatures up to 2000 K, can be placed inside the gas pressure reactors. The chambers are equipped with additional systems necessary for annealing in vacuum, cooling of the reactor, electronic stabilization and programming of pressure and temperature. To monitor the temperature during the experiments, PtRh6%–PtRh30% thermocouples are used. They are arranged along the furnace and coupled with the input power control electronic systems. The pressure is measured by manganin gauges positioned in the low temperature zone of the reactor. The pressure and the temperature are stabilized with an accuracy of 1 MPa and 0.1 K, respectively.

Typically a sample (covered by a special cap if needed) is placed in the crucible and heated in the furnace inside the high pressure reactor with a constant rate (from 0.1 K/h to 1600 K/h) to a given temperature (from 500 K to 2000 K). Then, the system is annealed at these conditions under high nitrogen pressure (1 GPa or less) for a given time from 0.1 sec to 1000 h. After that, the furnace is cooled down at a constant rate (maximum 200 K/min), the system is decompressed, and the sample is removed.

More articles in this field:

Glasses

Nitrides

Damian Paliwoda, Marco Fabbiani, Mélanie Wynn, Frederico Alabarse, Anja Rosenthal, Wilson Crichton, Leszek Konczewicz, Michal Bockowski, David Maurin, Thierry Michel, Umit B. Demirci, Jérôme Rouquette, Patrick Hermet, Francesco di Renzo, Arie van der Lee, Guillaume Cassabois, Samuel Bernard, Julien Haines "Preparation of Confined One-Dimensional Boron Nitride Chains in the 1-D Pores of Siliceous Zeolites under High-Pressure, High-Temperature Conditions" Inorg. Chem. (nov 2022)
Tetsu Kachi, Tetsuo Narita, Hideki Sakurai, Maciej Matys, Keita Kataoka, Kazufumi Hirukawa, Kensuke Sumida, Masahiro Horita, Nobuyuki Ikarashi, Kacper Sierakowski, Michal Bockowski, Jun Suda "Process engineering of GaN power devices via selective-area p-type doping with ion implantation and ultra-high-pressure annealing" Journal of Applied Physics (oct 2022)
Dolar Khachariya, Shane Stein, Will Mecouch, M. Hayden Breckenridge, Shashwat Rathkanthiwar, Seiji Mita, Baxter Moody, Pramod Reddy, James Tweedie, Ronny Kirste, Kacper Sierakowski, Grzegorz Kamler, Michal Bockowski, Erhard Kohn, Spyridon Pavlidis, Ramón Collazo, Zlatko Sitar "Vertical GaN junction barrier Schottky diodes with near-ideal performance using Mg implantation activated by ultra-high-pressure annealing" Appl. Phys. Express (sep 2022)
Emi Kano, Keita Kataoka, Jun Uzuhashi, Kenta Chokawa, Hideki Sakurai, Akira Uedono, Tetsuo Narita, Kacper Sierakowski, Michal Bockowski, Ritsuo Otsuki, Koki Kobayashi, Yuta Itoh, Masahiro Nagao, Tadakatsu Ohkubo, Kazuhiro Hono, Jun Suda, Tetsu Kachi, Nobuyuki Ikarashi "Atomic resolution analysis of extended defects and Mg agglomeration in Mg-ion-implanted GaN and their impacts on acceptor formation" Journal of Applied Physics (aug 2022)
M. A. Reshchikov, D. O. Demchenko, M. Vorobiov, O. Andrieiev, B. McEwen, F. Shahedipour-Sandvik, K. Sierakowski, P. Jaroszynski, M. Bockowski "Photoluminescence related to Ca in GaN" Phys. Rev. B (jul 2022)
Akira Uedono, Hideki Sakurai, Jun Uzuhashi, Tetsuo Narita, Kacper Sierakowski, Shoji Ishibashi, Shigefusa F. Chichibu, Michal Bockowski, Jun Suda, Tadakatsu Ohkubo, Nobuyuki Ikarashi, Kazuhiro Hono, Tetsu Kachi "Effect of Ultra-High-Pressure Annealing on Defect Reactions in Ion-Implanted GaN Studied by Positron Annihilation" Physica Status Solidi (b) (may 2022)
Jun Uzuhashi, Jun Chen, Ashutosh Kumar, Wei Yi, Tadakatsu Ohkubo, Ryo Tanaka, Shinya Takashima, Masaharu Edo, Kacper Sierakowski, Michal Bockowski, Hideki Sakurai, Tetsu Kachi, Takashi Sekiguchi, Kazuhiro Hono "Atomic-scale investigation of implanted Mg in GaN through ultra-high-pressure annealing" Journal of Applied Physics (may 2022)
Kacper Sierakowski, Rafal Jakiela, Michal Fijalkowski, Tomasz Sochacki, Malgorzata Iwinska, Pawel Kempisty, Marcin Turek, Michal Bockowski "Investigation of beryllium diffusion in HVPE-GaN grown in [1120] and [10-10] crystallographic directions" Materials Science in Semiconductor Processing (mar 2022)
M. A. Reshchikov, O. Andrieiev, M. Vorobiov, D. Ye, D. O. Demchenko, K. Sierakowski, M. Bockowski, B. McEwen, V. Meyers, F. Shahedipour-Sandvik "Thermal annealing of GaN implanted with Be" Journal of Applied Physics (mar 2022)
Hideki Sakurai, Tetsuo Narita, Keita Kataoka, Kazufumi Hirukawa, Kensuke Sumida, Shinji Yamada, Kacper Sierakowski, Masahiro Horita, Nobuyuki Ikarashi, Michal Bockowski, Jun Suda, Tetsu Kachi "Effects of the sequential implantation of Mg and N ions into GaN for p-type doping" Appl. Phys. Express (oct 2021)
Maciej Matys, Takashi Ishida, Kyung Pil Nam, Hideki Sakurai, Keita Kataoka, Tetsuo Narita, Tsutomu Uesugi, Michal Bockowski, Tomoaki Nishimura, Jun Suda, Tetsu Kachi "Design and demonstration of nearly-ideal edge termination for GaN pn junction using Mg-implanted field limiting rings" Appl. Phys. Express (jun 2021)
Kazufumi Hirukawa, Kensuke Sumida, Hideki Sakurai, Hajime Fujikura, Masahiro Horita, Yohei Otoki, Kacper Sierakowski, Michal Bockowski, Tetsu Kachi, Jun Suda "Isochronal annealing study of Mg-implanted p-type GaN activated by ultra-high-pressure annealing" Appl. Phys. Express (apr 2021)
Masamichi Akazawa, Encheng Wu, Hideki Sakurai, Michal Bockowski, Tetsuo Narita, Tetsu Kachi "X-ray photoelectron spectroscopy study on effects of ultra-high-pressure annealing on surface of Mg-ion-implanted GaN" Jpn. J. Appl. Phys. (mar 2021)
Maciej Matys, Takashi Ishida, Kyung Pil Nam, Hideki Sakurai, Tetsuo Narita, Tsutomu Uesugi, Michal Bockowski, Jun Suda, Tetsu Kachi "Mg-implanted bevel edge termination structure for GaN power device applications" Appl. Phys. Lett. (mar 2021)
M. Hayden Breckenridge, James Tweedie, Pramod Reddy, Yan Guan, Pegah Bagheri, Dennis Szymanski, Seiji Mita, Kacper Sierakowski, Michał Boćkowski, Ramon Collazo, Zlatko Sitar "High Mg activation in implanted GaN by high temperature and ultrahigh pressure annealing" Appl. Phys. Lett. (jan 2021)
Takuya Nakashima, Emi Kano, Keita Kataoka, Shigeo Arai, Hideki Sakurai, Tetsuo Narita, Kacper Sierakowski, Michal Bockowski, Masahiro Nagao, Jun Suda, Tetsu Kachi, Nobuyuki Ikarashi "Enhanced activation of Mg ion-implanted GaN at decreasing annealing temperature by prolonging duration" Appl. Phys. Express (dec 2020)
Akira Uedono, Hideki Sakurai, Tetsuo Narita, Kacper Sierakowski, Michal Bockowski, Jun Suda, Shoji Ishibashi, Shigefusa F. Chichibu, Tetsu Kachi "Effects of ultra-high-pressure annealing on characteristics of vacancies in Mg-implanted GaN studied using a monoenergetic positron beam" Sci Rep (oct 2020)

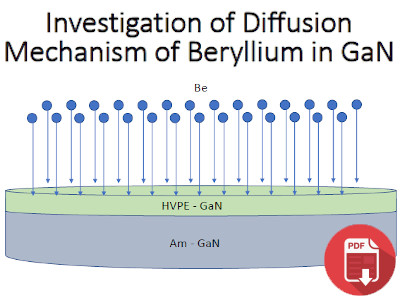

Rafal Jakiela, Kacper Sierakowski, Tomasz Sochacki, Małgorzata Iwinska, Michal Fijalkowski, Adam Barcz, Michal Bockowski "Investigation of diffusion mechanism of beryllium in GaN" Physica B: Condensed Matter (oct 2020)
